Specifications

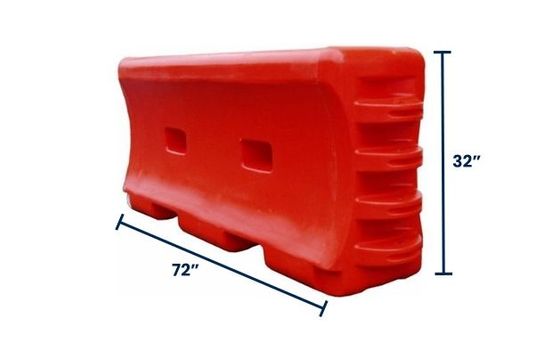

| Weight | 80 lbs. |
|---|---|
| Width | 18 in |
| Height | 32 in |
| Length | 72 in |
| Application | Channelizing Devices |
| Material | Linear Low-Density Polyethylene |
| Filled Weight | 1,004 lbs |
| Fill Capacity | 130 Gallons |
| Certified | MASH LCD Test Level 1,2 and 3 |
Need Help?
Contact our Specialists at (888) 766-2616Water-Wall | Water Barrier
(0 reviews) | Write your reviewModel# TF45032

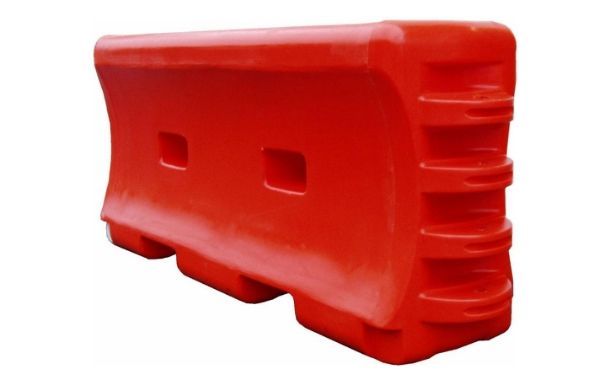

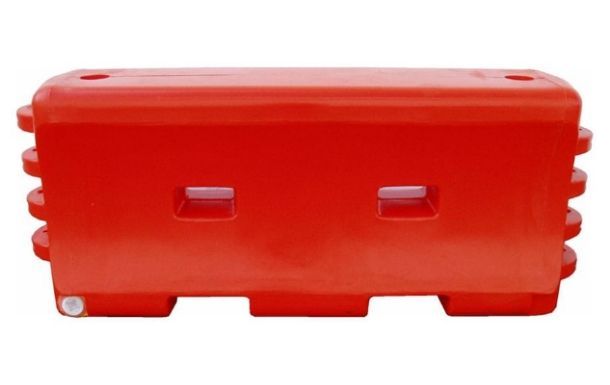

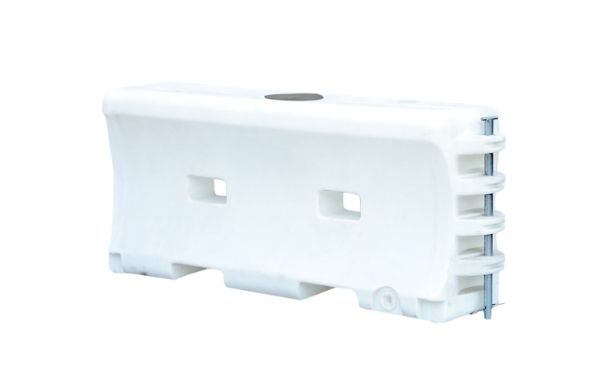

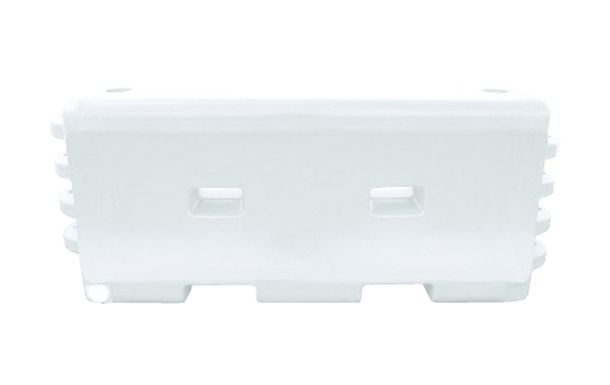

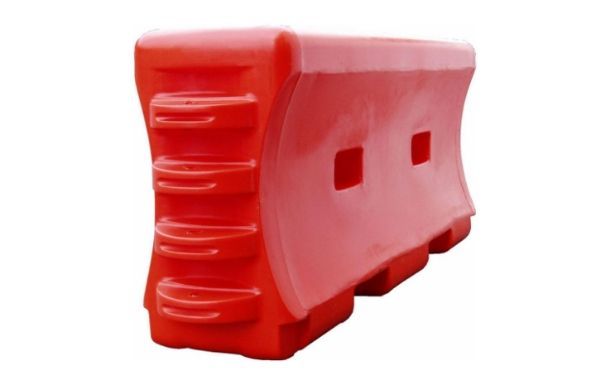

The Water-Wall Barrier is a durable, temporary crash barrier system with TL-1,2 and 3 certification, designed for work-zone safety on roads, highways, and around construction sites.
Register Zipcode or login for
shipping estimate
$350 00/ ea
- Orange
- White
Our location
Click to see our current shipping locations. This product might not be available on all warehouses.
Buy now pay later
Check out our online credit terms options and our super-fast approval process.
Price Match
With competitive pricing throughout the store, a price match guarantee that applies no matter how you choose to pay.
FAQ
Check out our frequently asked question session to learn more or to ask a question.
Overview
The Water Barrier for Every Need

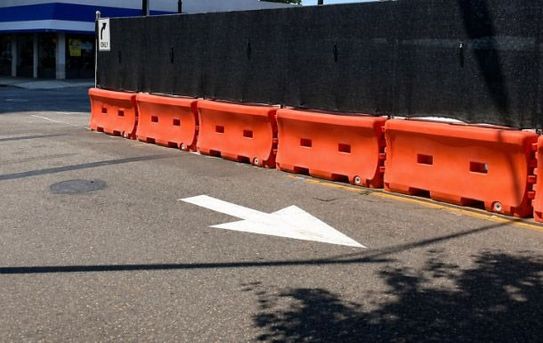

The TrafFix Water-Wall is a water-filled barrier system designed for maximum safety in high-traffic areas and construction zones. Made from durable polyethylene, these barriers can be connected to create continuous, highly visible barricades that are effective at controlling traffic flow and protecting work zones. Each section features a unique interlocking hinge design that allows for up to 30-degree pivoting, enabling smooth transitions around curves and corners without sacrificing stability.
Reliable, Crash-Tested Barrier for Work Zones and High-Traffic Areas
The TrafFix Water-Wall barrier system is MASH compliant as a Longitudinal Channelizing Device and has been tested and passed under NCHRP 350 standards, as TL-1 Barrier Wall, TL-2 Longitudinal Channelizing Device and as a TL-3 Barricade. Designed to deflect impacts and disperse water upon collision, these barriers provide safe separation between vehicles and work zones, minimizing damage and enhancing safety.
Key Features of the TrafFix Water-Wall
Constructed from low-density polyethylene, these barriers are built to withstand repeated deployments and harsh environmental conditions.
Easy to Fill and Drain:
|
Features an 8-inch fill port and a tamper-resistant drain plug, making it quick and easy to fill or drain. |
Stackable for Storage:
|

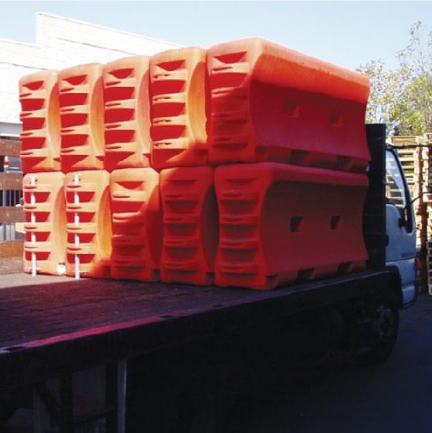

Water-Walls can be stacked up to three high when empty, saving valuable space during transportation. |
High-Visibility Colors:
|
Available in safety orange and white, making them more visible than concrete or wood alternatives. |
Water Barriers Made to Last
TrafFix Water-Wall barriers are made from flexible LDPE, which offers greater impact resistance compared to the more rigid HDPE used in many other water barriers. This added flexibility reduces the risk of cracking or breaking upon impact, making these barriers a reliable long-term investment for any construction company. In the event of surface damage, the LDPE material can be easily patched, allowing you to repair the barrier instead of replacing the entire unit.
PRO TIP:
Boost Security with the Water-Wall Fence Topper
Pair your TrafFix Water-Wall barriers with the Water-Wall Fence Topper for added height and security. This 11-gauge steel mesh fence attaches easily to the top of the barriers, creating an 84” tall barricade that prevents unauthorized access while maintaining visibility. Get them now here at SONCO!
